A4000

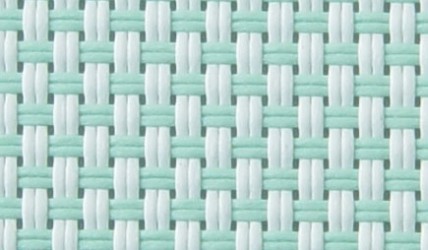

Polyester PVC coated screen fabric, 2x2 basket weave in 4 openness factors - 1%,3%,5%,10%.

Technical characteristics

Composition 30% polyester, 70% PVC
Weight 525g/m2±5% GB/T4669-2008
Thickness 0.71mm±5% FZ/T01003-1991
Tensile Strength Warp 2580N/5cm,Weft 2300N/5cm DIN53354:1981
Tearing Strength Warp 334N, Weft 332N DIN53363:2003
Elongation Warp 19%,Weft 23%
Openness Factor Approx. 5% FZ/T01009-2008
Color Fastness 8/7/4.5 GB/T8427-2008/ ISO 105 B02/ ATCC
Fire Resistance B2(Oxygen.Index≥27mm)/NFPA701/M2 GB 50222-95/ NFPA701/ NFP92-503
UV screen Approx. 95%
Environment HJ/T307-2006 OEKO-TEX STANDARD 100CLASS ZV GREEN GUARD ECOSPECIFIER CETEC
Pattern plain weaving
Making-up high frequency welding, ultrasonic welding,
Width 1.7M/2.0M/2.5M/3.0M
Length 27.4m/roll GB/T4669-2008

Thermal and optical factors

Ts Rs As TuV
A4001
white
22 64 14 7
A4002
beige
17 57 26 6
A4014
sand
12 41 47 7

Colors

Application
Roller Blind Vertical Blind Velum Garden Shade Skylight blinds Panel Shades
    - used indoors        - used outdoors
