X2000
Catalogue >> X2000

X2000

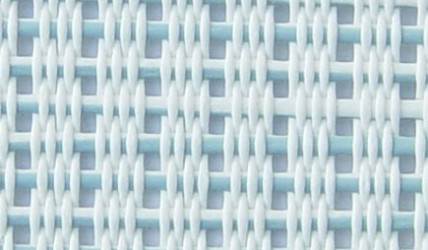

Polyester screen fabrics that allows to have more visual freedom, while protecting from the harmful sun rays.

Technical characteristics

Composition 30% polyester, 70% PVC
Weight 427g/m2±5% GB/T4669-2008
Thickness 0.74mm±5% FZ/T01003-1991
Tensile Strength Warp 1620N/5cm,Weft 1090N/5cm DIN53354:1981
Tearing Strength Warp 211N, Weft 167N DIN53363:2003
Elongation Warp 23%,Weft 14%
Openness Factor 15% FZ/T01009-2008
Color Fastness 8/7/4.5 GB/T8427-2008/ ISO 105 B02/ ATCC
Fire Resistance B2(Oxygen.Index≥27mm)/NFPA701/M2 GB 50222-95/ NFPA701/ NFP92-503
UV screen 85%
Environment HJ/T307-2006 OEKO-TEX STANDARD 100CLASS ZV GREEN GUARD ECOSPECIFIER CETEC
Pattern plain weaving
Making-up high frequency welding, ultrasonic welding,
Width 1.7M/2.0M/2.5M
Length 27.4m/roll GB/T4669-2008

Colors

Application
Roller Blind Skylight blinds Panel Shades
    - used indoors        - used outdoors
Certificates
