W5000
Catalogue >> W5000

W5000

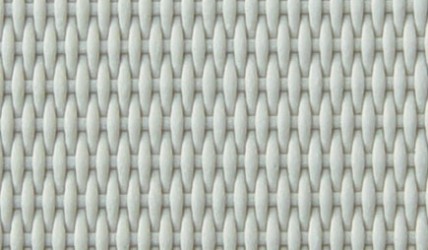

Polyester PVC screen fabric with dim-out effect(block 99% of sunlight).

Technical characteristics

Composition 20% polyester, 80% PVC
Weight 810g/m2±5% GB/T4669-2008
Thickness 1.08mm±5% FZ/T01003-1991
Tensile Strength Warp 3370N/5cm,Weft 1220N/5cm DIN53354:1981
Tearing Strength Warp 473N, Weft 159N DIN53363:2003
Elongation Warp 33%,Weft 18%
Openness Factor 1% FZ/T01009-2008
Color Fastness 8/7/4.5 GB/T8427-2008/ ISO 105 B02/ ATCC
Fire Resistance B2(Oxygen.Index≥27mm)/NFPA701/M2 GB 50222-95/ NFPA701/ NFP92-503
UV screen 99%
Environment HJ/T307-2006 OEKO-TEX STANDARD 100CLASS ZV GREEN GUARD ECOSPECIFIER CETEC
Pattern plain weaving
Making-up high frequency welding, ultrasonic welding,
Width 2.0M/2.5M
Length 27.4m/roll GB/T4669-2008

Colors

Application
Roller Blind Skylight blinds Panel Shades
    - used indoors        - used outdoors
Certificates
