FD4300

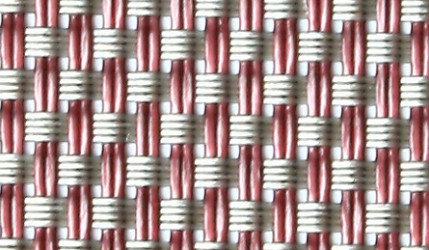

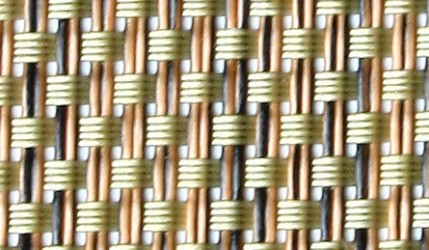

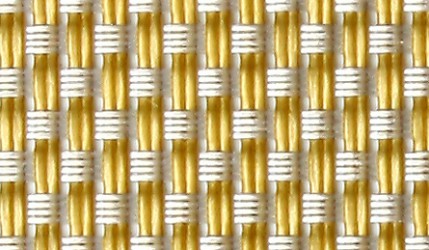

A unique design screen collection. The collection holds innovative shiny, metallic screens which are woven with a new generation of pvc-coated polyester yarns allowing complex weaving techniques with shiny, metallic color tones. FD4300 series have 4x2 plain weaving style. The excellent heat and light control properties of screens are preserved and are now combined with beautiful metallic colors and unique weaving patterns. The exclusive Metallic collection offers jacquard varieties as well. Suitable for use on both interior and exterior applications.
Technical characteristics
Composition | 30% polyester, 70% PVC | |
Weight | 570g/m±5% | GB/T4669-2008 |
Thickness | 0.68mm±5% | FZ/T01003-1991 |
Tensile Strength | Warp 1495N/5cm,Weft 1875N/5cm | DIN53354:1981 |
Tearing Strength | Warp 155N, Weft 240N | DIN53363:2003 |
Elongation | Warp 21%,Weft 16% | |
Openness Factor | 7% | FZ/T01009-2008 |
Color Fastness | 8/7/4.5 | GB/T8427-2008/ ISO 105 B02/ ATCC |
Fire Resistance | B2(Oxygen.Index≥27mm)/NFPA701/M2 | GB 50222-95/ NFPA701/ NFP92-503 |
UV screen | 93% | |
Environment | HJ/T307-2006 OEKO-TEX STANDARD 100CLASS ZV GREEN GUARD ECOSPECIFIER CETEC | |
Pattern | plain weaving | |
Making-up | high frequency welding, ultrasonic welding, | |
Width | 2.0M/2.5M/3.0M | |
Length | 27.4m/roll | GB/T4669-2008 |
