D0000

One of the most versatile PVC/FIBERGLASS blackout fabric available in the market. Its ultra-durable 4-PLY fabric construction offers complete privacy and optimum insulation from heat and sunlight. It is also ideal for wet and humid locations like the bathroom, hospitals and clean-room environments because of its anti-bacterial & fungal characteristics.
Aplus is also one of the 1st in the world to produce this fabric in widths of 1830mm, 2440mm & up to 3000mm!!

Technical characteristics

Composition 1 ply 100% fiberglass, 3 ply plasticized PVC
Weight 557g/m±5% GB/T4669-2008
Thickness 0.36mm±5% FZ/T01003-1991
Tensile Strength Warp 2910/5cm,Weft 2500N/5cm DIN53354:1981
Tearing Strength Warp 64N, Weft 57N DIN53363:2003
Elongation Warp 3%,Weft 3%
Openness Factor 0% FZ/T01009-2008
Color Fastness 8/7/4.5 GB/T8427-2008/ ISO 105 B02/ ATCC
Fire Resistance B1(Oxygen.Index≥27mm)/NFPA701/M2 GB 50222-95/ NFPA701/ NFP92-503
UV screen 100%
Environment HJ/T307-2006 OEKO-TEX STANDARD 100CLASS ZV GREEN GUARD ECOSPECIFIER CETEC
Pattern blackout
Making-up
Width 1.83M/2.4M/3.0M
Length 25.0 M GB/T4669-2008

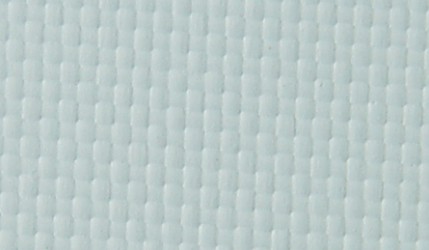

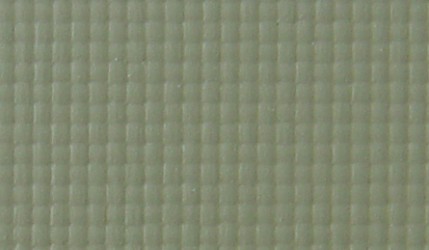

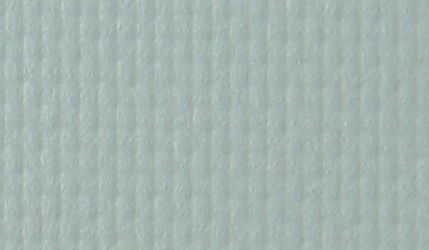

Colors

Application
Roller Blind Vertical Blind Projection shades Skylight blinds Panel Shades
    - used indoors        - used outdoors
Certificates
