Catalogue >> AT9950

AT9950

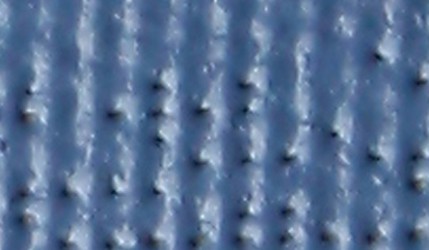

Our Altis range of fabrics offer high UV thermal and visual insulation. Its high-tenacity polyester core and the unique method of weaving gives it the durability required for both indoor and outdoor applications.

Technical characteristics

Composition	100% polyester, PVC coated, both side lacquered
Weight	270g/m2±5%	GB/T4669-2008
Thickness	0.30mm±5%	FZ/T01003-1991
Tensile Strength	Warp 1420N/5cm,Weft 1910N/5cm	DIN53354:1981
Tearing Strength	Warp 239N, Weft 237N	DIN53363:2003
Elongation	Warp 18%,Weft 24%
Openness Factor	5%	FZ/T01009-2008
Color Fastness	8/7/4.5	GB/T8427-2008/ ISO 105 B02/ ATCC
Fire Resistance	B2(Oxygen.Index≥27mm)/NFPA701/M2	GB 50222-95/ NFPA701/ NFP92-503
UV screen	Approx. 95%
Environment	HJ/T307-2006 OEKO-TEX STANDARD 100CLASS ZV GREEN GUARD ECOSPECIFIER CETEC
Pattern	lamination
Making-up	high frequency welding, ultrasonic welding,
Width	1.83M/2.44M/3.0M
Length	27.4m/roll	GB/T4669-2008

Colors

Application

- used indoors

- used outdoors

Certificates
